- Modified Atmosphere Packaging (MAP) replaces the air inside a sealed pack with a precisely calibrated gas mixture — typically CO₂, N₂, and/or O₂ — to slow spoilage and extend product shelf life.
- Gas composition is product-specific: fresh red meat requires high O₂ to maintain bloom color; fish and soft cheeses need high CO₂ to suppress bacteria; nitrogen is used as an inert filler across most categories.
- MAP extends fresh meat shelf life from 2–3 days to 7–14 days — a transformative gain for retailer logistics and food waste reduction.
- EVOH-barrier thermoformed trays are essential to MAP performance: gas permeability of the packaging material must be matched to the product's gas consumption rate.
- Smart MAP — integrating gas sensors, freshness indicators, and NFC tags — is the sector's fastest-growing innovation area in 2026.
Table of Contents
- What Is Modified Atmosphere Packaging?
- How MAP Works
- MAP Gas Types and Their Functions
- MAP by Food Category
- Choose MAP When…
- MAP vs. Competing Preservation Technologies
- Technical Reference: Gas Mixtures by Product
- Industry Insight: Smart MAP in 2026
- MAP Equipment and Machinery
- Frequently Asked Questions
What Is Modified Atmosphere Packaging?
Modified Atmosphere Packaging (MAP) is a technology that significantly extends the shelf life of perishable food products by replacing the normal air inside a sealed package with a controlled gas mixture. Standard air contains approximately 78% nitrogen, 21% oxygen, and 0.04% carbon dioxide. In MAP, this composition is adjusted — often dramatically — to create an internal environment that slows oxidation, inhibits microbial growth, and maintains the visual and sensory quality of the product throughout its distribution and retail life.
MAP is not a single process but a family of related packaging technologies applied across fresh meat, poultry, fish, dairy, bakery, convenience food, fresh produce, and snack categories. The gas mixture, packaging material barrier specification, and sealing integrity must all be optimized together to achieve target shelf life. A poorly specified MAP system — wrong gas mix, insufficient barrier, inadequate headspace — will perform no better than conventional air packaging.
Understanding MAP requires familiarity with food microbiology, gas transmission properties of packaging films, and the operational requirements of gas flushing and sealing equipment. This guide covers all three dimensions.
How MAP Works
The MAP process takes place at the point of packaging, typically inline with food production. There are three main sealing methods used in MAP systems:
Tray Sealing with Gas Flushing
Pre-formed trays are loaded with product, placed in a tray sealing machine, and a modified gas atmosphere is created inside the sealed pack before the lidding film is heat-sealed. The machine evacuates the tray cavity and back-flushes with the desired gas mixture. Gas flushing is the most common MAP method in food retail, used for fresh meat, ready meals, poultry, and dairy.
Form-Fill-Seal (FFS) MAP
In inline FFS MAP systems, the base film is thermoformed into cavities, the product is deposited, the headspace is flushed with modified gas, and the lidding film is sealed — all in a continuous operation. FFS MAP is the dominant method for high-volume food processors due to its efficiency, lower packaging material cost, and reduced handling. For background on the thermoforming process underlying FFS MAP, see our guide to Thermoforming Packaging.
Flow Wrapping with Gas Flush (VFFS/HFFS)
Vertical or horizontal form-fill-seal wrapping machines can incorporate gas flushing for products like sliced bread, snacks, and bakery. The gas flush replaces the air before the final seal is formed. This method is less effective than tray MAP for high-moisture products because the flexible packaging provides lower barrier performance, but it is cost-efficient for dry and intermediate-moisture goods.
MAP Gas Types and Their Functions
Carbon Dioxide (CO₂)
CO₂ is the primary antimicrobial agent in MAP. It is bacteriostatic and fungistatic — at concentrations above 20%, it significantly inhibits the growth of most aerobic spoilage bacteria and mold. CO₂ dissolves into the aqueous and lipid phases of food products, reducing pH and disrupting microbial metabolism. High CO₂ concentrations (50–100%) are used for fish, soft cheese, and processed meats where rapid spoilage control is the priority. One important operational consideration: CO₂ is absorbed by wet products over time, which can cause pack collapse (purge absorption). Nitrogen is used to compensate.
Nitrogen (N₂)
Nitrogen is biologically inert, odorless, and tasteless, and functions primarily as a filler gas in MAP. It displaces oxygen, preventing oxidative rancidity and off-flavor development in high-fat products like crisps, nuts, and cheese. Nitrogen also provides cushioning pressure to maintain pack integrity during transport and storage, particularly important for fragile products like crisps and biscuits. Because N₂ has very low solubility in water and fat, it does not cause pack collapse, making it the ideal partner for CO₂ in wet-product MAP applications.
Oxygen (O₂)
Oxygen is a spoilage accelerant for most food products, but it plays an essential functional role in two specific MAP applications. For fresh red meat (beef, lamb), high oxygen concentrations (60–80%) are used to maintain oxymyoglobin — the bright cherry-red pigment consumers associate with freshness. Remove the oxygen, and the meat turns the metmyoglobin brown color that shoppers incorrectly interpret as spoilage. For fresh whole vegetables and cut produce, residual oxygen is needed to support cellular respiration and prevent anaerobic fermentation. MAP for fresh produce therefore uses low oxygen (2–5%) rather than the oxygen elimination used for most other food categories.
Argon (Ar)
Argon is occasionally used as a premium substitute for nitrogen in specific applications — particularly wine and premium coffee packaging. Its heavier molecular weight and slightly better solubility profile compared to nitrogen are cited as benefits, though the performance advantage over nitrogen is modest and the cost significantly higher. Argon MAP remains a niche choice.
MAP by Food Category
Fresh Red Meat (Beef, Lamb, Pork)
Fresh beef and lamb are the largest single MAP segment by volume. High-oxygen MAP (HiOx MAP) uses 70–80% O₂ / 20–30% CO₂ mixtures to maintain the bright red myoglobin color while suppressing spoilage bacteria. Retail shelf life in HiOx MAP is 7–14 days compared to 2–3 days in standard overwrap — a gain that fundamentally enables the centralized portioning and long-distance distribution models used by supermarket supply chains. EVOH barrier trays are mandatory: oxygen transmission rate (OTR) must be below 5 cc/m²/day to maintain gas integrity.
Poultry
Poultry MAP typically uses lower O₂ concentrations than red meat — 30–50% O₂ / 20–30% CO₂ — or in some markets, low-oxygen CO₂/N₂ mixtures. Chicken lacks the myoglobin color response of beef, so the oxygen requirement is lower. Shelf life of 8–12 days for portioned poultry under MAP compares with 4–5 days in conventional overwrap.
Fresh Fish and Seafood
Fish has a very different MAP profile from red meat. Because maintaining flesh color is not an objective, and because fish-spoilage bacteria are particularly CO₂-sensitive, high-CO₂ / N₂ mixtures (40–60% CO₂) without oxygen are used. Shelf life extension of 3–5× versus air packaging is achievable for white fish fillets. Fatty fish species like salmon require careful optimization because high CO₂ can accelerate fat oxidation in some conditions.
Cheese and Dairy
Hard cheeses use N₂ / CO₂ mixtures to suppress mold growth and prevent oxidative off-flavors. Soft cheeses and cream cheeses require higher CO₂ concentrations. Yogurt is typically not MAP-packaged due to its acidic pH acting as its own preservation system, but crème fraîche and soft ripened cheeses benefit significantly. Sliced cheese MAP with high CO₂ achieves shelf lives of 8–12 weeks.
Bakery and Snacks
Bread and baked goods use N₂ or CO₂/N₂ mixtures primarily to inhibit mold growth and prevent oxidative staleness. Pre-sliced bread with MAP achieves shelf life of 7–21 days depending on the CO₂ concentration and formulation. Crisps, nuts, and snack foods use high-nitrogen MAP to prevent oxidative rancidity: these products require very low OTR films and often include oxygen scavenger sachets as an additional measure.
- Your product is spoilage-sensitive and you need shelf life beyond what vacuum packaging or conventional wrapping can deliver.
- You are packaging fresh red meat and need to maintain consumer-preferred red color throughout retail display — vacuum packaging turns meat purple.
- You need to support centralized processing and long-haul distribution — MAP shelf life makes national and international retail supply chains viable for fresh protein.
- Your product is fragile (baked goods, crisps) and cannot tolerate the crush pressure of vacuum packaging.
- Your retail buyer requires a specific shelf life or food waste reduction commitment as a supply contract condition.
MAP vs. Competing Preservation Technologies
| Technology | Shelf Life Extension | Capital Cost | Pack Appearance | Best Applications | Limitations |
|---|---|---|---|---|---|
| MAP (Gas Flush) | 3–10× | Medium–High | Inflated/rigid tray | Meat, fish, dairy, bakery | Gas cost, headspace needed |
| Vacuum Pack | 2–5× | Low–Medium | Tight film, purple meat | Processed meat, cheese, wet products | Color change in red meat |
| Vacuum Skin Pack (VSP) | 2–4× | Medium | Skin-tight, premium | Premium meat, fish, ready meals | No gas atmosphere |
| Active Packaging (O₂ Scavenger) | 2–4× additional | Medium (sachet cost) | Normal | Bread, coffee, deli meats | Sachet cost, consumer handling |
| HPP (High Pressure Processing) | 3–10× | Very high | Any format | Juices, hummus, guacamole | Batch process, limited capacity |
Technical Reference: Gas Mixtures by Product
| Product Category | Typical MAP Mix | Tray OTR Target | Headspace % | Shelf Life (days) |
|---|---|---|---|---|
| Fresh red meat (retail) | 70% O₂ / 30% CO₂ | <5 cc/m²/day | 50–60% | 7–14 |
| Minced beef | 80% O₂ / 20% CO₂ | <3 cc/m²/day | 60–70% | 5–8 |
| Poultry | 30% O₂ / 40% CO₂ / 30% N₂ | <10 cc/m²/day | 40–50% | 8–12 |
| White fish fillets | 40% CO₂ / 60% N₂ | <10 cc/m²/day | 40–50% | 10–16 |
| Smoked salmon | 60% CO₂ / 40% N₂ | <5 cc/m²/day | 30–40% | 21–28 |
| Hard cheese (sliced) | 30% CO₂ / 70% N₂ | <10 cc/m²/day | 30–40% | 56–84 |
| Sliced cooked meats | 25% CO₂ / 75% N₂ | <10 cc/m²/day | 30–40% | 21–28 |
| Crisps / snacks | 100% N₂ | <50 cc/m²/day | 60–80% | 90–180 |
| Cut salad / fresh produce | 3–5% O₂ / 5–10% CO₂ / N₂ | <100 cc/m²/day | 15–30% | 7–14 |
| Pre-sliced bread | 60% CO₂ / 40% N₂ | <100 cc/m²/day | 30–50% | 14–21 |
The next frontier for MAP is intelligence. Static gas replacement is mature technology — the competitive differentiation in 2026 is happening in smart packaging integration. Leading food manufacturers and retailers are piloting MAP trays with embedded sensors (colorimetric CO₂ indicators, time-temperature integrators, and oxygen leak detection strips) that communicate pack status through QR codes or NFC tags readable by smartphones and retail handheld scanners. MULTIVAC presented its digital product passport solution for the food sector at interpack 2026 in Düsseldorf — a system that links pack-level data (gas composition, sealing parameters, machine ID, production timestamp) to a cloud database accessible throughout the supply chain. The regulatory driver is the EU's proposed Food Information to Consumers (FIC) regulation updates and the Digital Product Passport requirements under the Ecodesign for Sustainable Products Regulation (ESPR), which are expected to cover food packaging from 2028 onwards.
MAP Equipment and Machinery

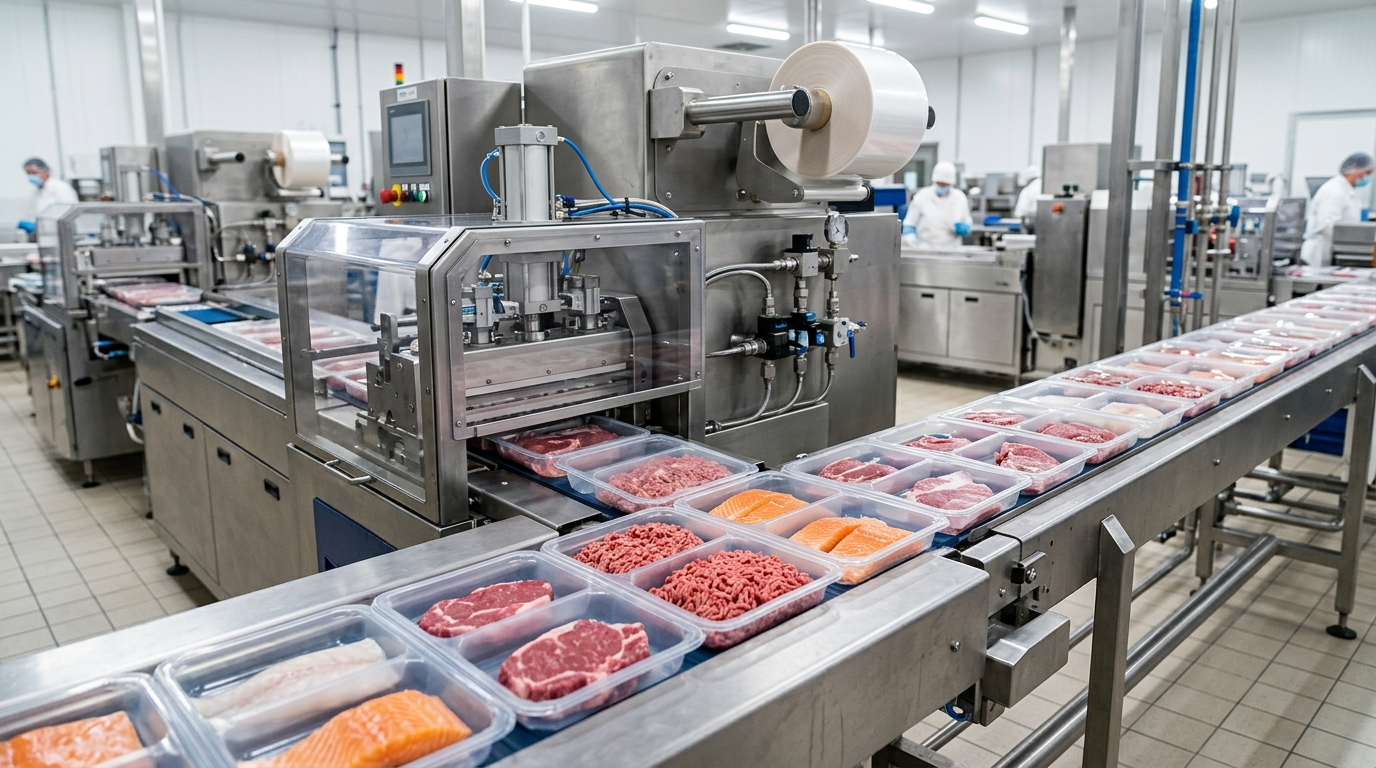

Tray Sealing Machines
Tray sealers range from semi-automatic tabletop units for artisan food producers to fully automated rotary and inline systems producing thousands of packs per hour. Gas flushing accuracy — the precision with which the target gas composition is achieved in each individual pack — is the key performance parameter. Automatic gas analysis sampling systems that test headspace composition of random packs inline are standard on industrial lines. For thermoforming-based MAP, see the thermoformed tray section above.
Gas Supply Systems
MAP machines connect to bulk gas supply systems — typically liquid nitrogen and CO₂ storage tanks — through pressure-regulated distribution manifolds. Gas mixing units blend component gases to the target composition before delivery to the machine. Inline gas analysis using infrared (IR) or paramagnetic sensors verifies that the blend is within specification before the gas enters the pack headspace. Purity and consistency of gas supply directly impacts MAP shelf life outcomes — gas contamination or incorrect mixing ratios can negate the entire shelf life benefit.
Headspace Gas Analyzers
Non-destructive headspace analysis using laser-based transmission spectroscopy (OpTech-O₂ by Mocon, CheckMate III by PBI Dansensor) allows continuous sampling of sealed MAP packs without opening them. Destructive sampling with needle-based analyzers provides reference verification. Both methods are used in MAP quality systems — non-destructive for 100% inline checking, destructive for laboratory calibration and end-of-line verification.
Frequently Asked Questions
What does MAP stand for in food packaging?
MAP stands for Modified Atmosphere Packaging. The term "modified" distinguishes this technology from Controlled Atmosphere (CA) storage, which continuously maintains and adjusts the gas environment in large storage facilities. MAP creates a static modified atmosphere at the point of packaging — the gas composition inside the sealed pack is set once and not actively adjusted thereafter. The quality of the MAP depends on the initial gas flush accuracy, the barrier performance of the packaging material, and the seal integrity.
Is MAP packaging safe?
Yes. MAP is an established, regulatory-approved food preservation technology used globally at industrial scale. The gases used (CO₂, N₂, O₂) are all food-approved under EU Regulation EC 1333/2008 (food additives) and equivalent regulations in other markets. The key food safety consideration is that MAP is not a substitute for temperature control: it slows spoilage but does not prevent it if the cold chain is broken. MAP products must be maintained at correct refrigeration temperatures throughout distribution and retail to achieve their labeled shelf life.
Can MAP prevent Clostridium botulinum growth?
This is a critical food safety question. Low-oxygen MAP environments can suppress aerobic spoilage bacteria and molds that would normally signal product deterioration before dangerous anaerobic pathogens like Clostridium botulinum reach hazardous levels. If the spoilage organisms are suppressed by CO₂ but the cold chain is compromised, Clostridium botulinum can proliferate in vacuum or low-O₂ MAP packs without visible signs of spoilage. For this reason, regulatory authorities in many markets impose maximum shelf life limits on specific low-acid, low-oxygen MAP products (particularly cooked, chilled fish), and require specific mitigations (water phase salt content, pH reduction, minimum storage temperatures) to control the botulinum risk.
What is the difference between MAP and vacuum packaging?
Vacuum packaging removes air from around the product and seals it in a film that holds under negative pressure. There is no gas replacement — the headspace is essentially eliminated. MAP replaces the air with a specific gas mixture and maintains a positive headspace volume. For red meat, MAP with high oxygen is preferred because vacuum turns fresh beef purple-brown (deoxymyoglobin). For products where color is not an issue — cooked meats, cheese, processed fish — vacuum packaging is often the more cost-effective choice. MAP requires more sophisticated equipment and gas supply infrastructure, but delivers specific quality and shelf life benefits that vacuum packaging cannot replicate for fresh muscle foods.
How do I calculate the headspace percentage for MAP?
Headspace percentage is the ratio of free gas volume to total pack volume. As a general rule, MAP trays for fresh meat should have 50–60% headspace to provide sufficient gas reservoir to maintain the target atmosphere as the product consumes or absorbs gas over its shelf life. Products with high gas consumption rates (fresh cut produce, active yeast-containing products) need higher headspace ratios. Products with very low gas exchange rates (crisps, dry bakery) can operate with lower headspace percentages. Pack headspace is measured destructively by displacement or calculated from tray cavity dimensions and product fill weight.
What is the shelf life of MAP fresh meat?
Under ideal conditions — correct gas mix, appropriate EVOH barrier tray, good sealing integrity, continuous cold chain at 0–4°C — high-oxygen MAP fresh beef achieves retail shelf life of 7–14 days from packaging date. Mince typically achieves 5–8 days due to its high surface area and rapid O₂ consumption. Shelf life validation must be product-specific: challenge testing with relevant spoilage organisms and sensory evaluation are required to establish and label shelf life. The figures above are typical industry benchmarks, not guaranteed values for any specific product.
What packaging materials work best for MAP?
MAP performance depends entirely on matching the packaging material's gas transmission properties to the product's gas consumption or production rate. For oxygen-sensitive products, multi-layer films incorporating EVOH barrier layers are standard — achieving OTR values below 1–5 cc/m²/day at 23°C/65% RH. Lidding films must also meet barrier specifications. For fresh produce, where some gas exchange with the atmosphere is required, films with controlled OTR values (micro-perforated films or equilibrium MAP films) are used. The transition to mono-material recyclable MAP packaging — driven by EU PPWR requirements — is an active area of development, as detailed in our guide to thermoforming packaging materials.
