What PC is: the engineering end of clear forming
Polycarbonate is what the thermoforming catalogue offers when the question stops being packaging and starts being engineering. An amorphous, glass-clear thermoplastic with a glass transition around 147 °C, PC combines the two properties commodity clear films always trade against each other: extreme impact toughness — it is the reference unbreakable clear plastic, the material of safety glazing and riot shields — and genuine heat resistance, holding shape and properties to roughly 130–135 °C in continuous service where PET softens and PETG surrenders. That combination puts PC in a different conversation from the rest of this catalogue. It is not a barrier material (moisture and oxygen transmission are unremarkable), not a sealing film, and rarely a single-use pack: PC is chosen for formed parts that must survive — reusable trays hauling heavy or sharp components through years of industrial service, transparent machine guards and covers, sterilizable instrument trays, transit protection for goods whose weight would destroy lighter cavities. Where every other film's failure mode is the design constraint, PC's virtue is that it practically does not fail.
The price of the performance is paid twice. First in money: PC is an engineering polymer at engineering prices, several multiples of the commodity films, which confines it to applications that genuinely spend its properties. Second in process: PC is seriously hygroscopic and utterly unforgiving about it — sheet must be pre-dried (typically hours at ~120 °C, gauge-dependent) before forming at the hottest temperatures in the common catalogue (~180–210 °C surface), and wet PC announces itself immediately as bubbles, splay and brittleness. No material here punishes moisture negligence faster.
One conversation attaches to PC that specifiers must handle knowingly: bisphenol-A. Standard polycarbonate is polymerised from BPA, and regulatory restrictions on BPA in food-contact applications have effectively retired PC from mainstream food packaging in Europe — a decided question, not an open one. PC's thermoforming career today is industrial, medical-device and technical; food-adjacent programs should treat it as out of bounds and reach for PETG or PET instead. (BPA-free copolycarbonates exist for specific regulated niches, as their own deliberate specification.)
Strategically, PC is best understood as PETG's ceiling: the material you climb to when PETG's considerable toughness or ~70 °C comfort zone is genuinely exceeded — and only then, because PETG undercuts PC on price, forms far more easily, and carries none of the BPA baggage. The disciplined specification ladder runs PET → PETG → PC, each rung justified by a requirement the previous one measurably fails. Parts that reach the top rung tend to stay there for years, in service, being dropped — which is the whole point. Forming PC well — the drying discipline, the hot recipes, the heavy gauges — sits at the demanding end of thermoforming practice, closer to engineering fabrication than packaging production.
PC grades and variants
General-purpose PC sheet is the standard clear engineering sheet: extreme toughness, ~130 °C service, glass clarity. It is the default for guards, durable trays and formed technical parts, and the reference against which the specialised grades are chosen.
UV-stabilised / weatherable PC carries UV packages (or co-extruded UV cap layers) for outdoor and daylight service — unprotected PC yellows and embrittles under prolonged UV, so exterior applications specify this deliberately rather than discovering the need in the field.
Hard-coated PC adds abrasion-resistant coatings to address PC's soft surface, and is specified for guards, glazing-class parts and high-touch covers where scratching would retire an otherwise immortal part. The coatings constrain forming, so formability must be verified with the supplier before committing a geometry.
FR (flame-retardant) grades are UL-rated formulations for electrical housings, transit interiors and equipment covers where fire performance is specified — a common PC requirement in technical applications that generic sheet does not meet.
Medical / sterilizable grades are documented grades for device components and instrument trays, with sterilization tolerance (EtO and radiation broadly; steam/autoclave cycles grade-dependent and limited) and biocompatibility files to match. The specification lives on the grade's documentation, not on generic PC properties.
Forming PC: dry it, heat it properly, respect the gauge
Everything about PC processing starts with drying, because everything goes wrong without it. Polycarbonate absorbs atmospheric moisture readily, and at forming temperature that moisture boils: bubbles, splay, silver streaks and a part embrittled from within. Pre-drying is mandatory, not advisory — typically several hours at around 120 °C, longer for heavy gauges, per the supplier's schedule — and dried sheet has a working window before it re-absorbs enough moisture to matter. Serious PC operations treat drying as a scheduled production step with its own equipment and logs; casual ones discover why.
The forming itself runs hot: sheet surface temperatures in the region of 180–210 °C — the top of the common catalogue — with correspondingly capable heaters and patient heat-soak, since PC's typical gauges are heavy and the core must reach temperature with the surface. Underheated PC forms with enormous internal stress (visible in crossed polarisers, and eventually as environmental stress cracking in service); properly heated PC draws evenly, deeply and repeatably, with the amorphous material's characteristic even distribution.
Pressure helps. PC's melt stiffness at forming temperature is high, so crisp detail and full tool definition reward pressure forming over bare vacuum, particularly at heavier gauges; plug assist serves deep draws in the usual way. Tools run warm by commodity standards (heated aluminium is normal practice) to slow surface freezing on the hot sheet and preserve detail and low-stress forming.
Cooling and shrink behave amorphously: modest, predictable shrinkage (well under the polyolefins), good dimensional stability, and tolerance-holding that suits PC's technical applications. The heavy gauges cool slowly — cycle times are engineering-part cycles, not packaging cycles — and patient, even cooling pays off in low-stress, flat, stable parts. Trimming and finishing are fabrication work: heavy-gauge PC is routed, sawn and drilled more often than die-cut, and it machines beautifully but demands sharp tooling and sensible feeds. Annealing after aggressive machining is standard practice for stress-critical parts, and solvent exposure during finishing can trigger environmental stress cracking in stressed regions — qualify every chemical the part will meet, including in the workshop.
A line-planning note completes the picture: PC is a materials-discipline material. Its recipes sit far from the commodity films' (a PETG line cannot drift into PC settings), its drying adds a scheduling dimension, and its gauge and cycle economics belong to industrial forming. Plan it as its own workflow with its own validated states, and it runs with engineering predictability; treat it as hot PETG and it teaches expensive lessons.
Where PC earns its price: applications in depth
PC's applications all share one shape: durable, formed, clarity-plus-toughness parts at the engineering end of thermoforming, where impact, heat or years of reuse measurably defeat the commodity rung below. What changes across applications is which of PC's properties is being spent.

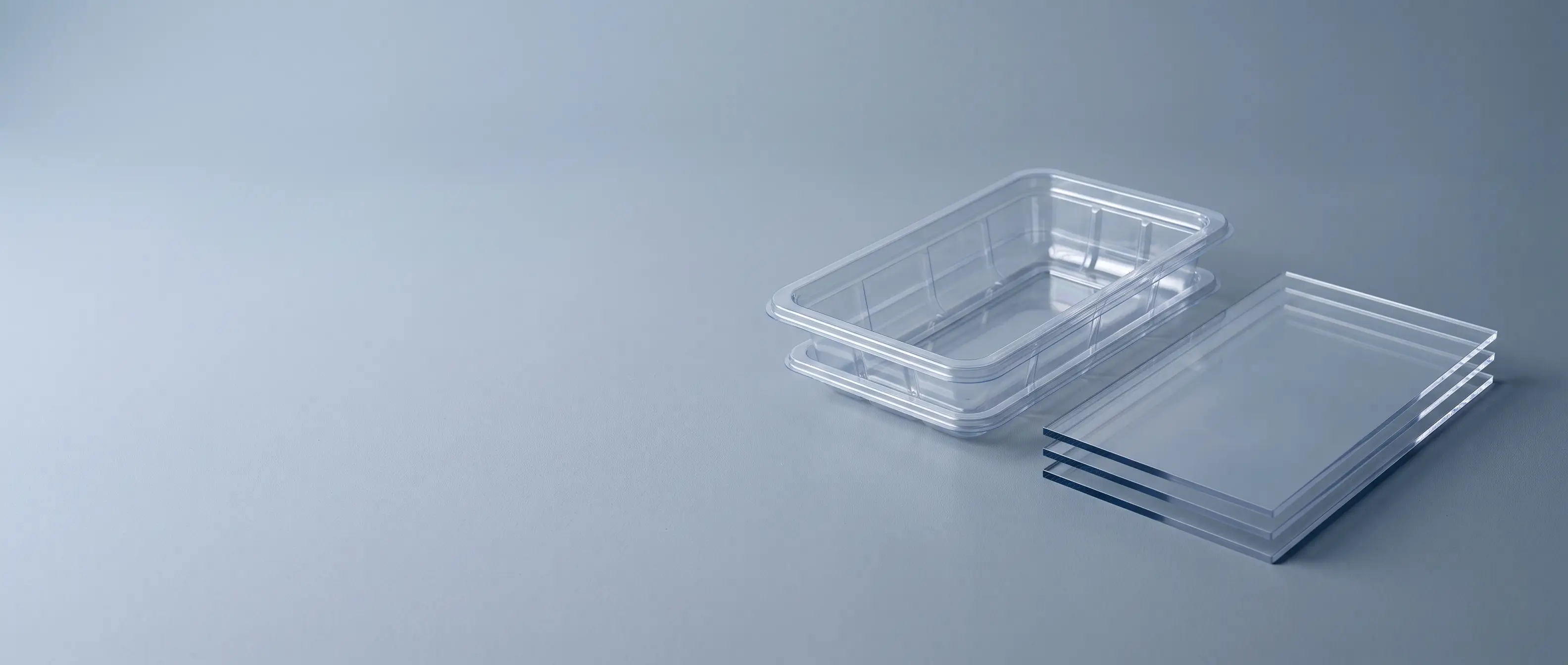

Reusable industrial trays & dunnage — Multi-trip handling trays for heavy, sharp or abusive parts — PC survives service that cracks or wears every commodity film. Machine guards, covers & housings — Formed transparent guards and equipment covers — glazing-class impact resistance in a thermoformed part. Medical device components & trays — Formed components and instrument trays exploiting PC's toughness, clarity and grade-dependent sterilization tolerance. Transit protection for heavy goods — Formed protective packs where the product's weight and value defeat lighter films — PC as the last word in formed protection.
Reusable industrial trays and dunnage are PC's volume home: kit trays, machine-tending trays and part carriers for components that are heavy, sharp, hot or oily, cycling through years of washing, stacking and abuse — where HDPE serves the rugged-and-opaque end, PC serves the see-the-contents, survive-anything end, and its formed cost amortises across service lives measured in years. Machine guards, covers and housings exploit the glazing pedigree: thermoformed PC delivers transparent impact protection in complex, formed geometries flat glazing sheet cannot economically match, with FR grades extending into electrical enclosures. Medical device components and instrument trays use documented medical grades where toughness, clarity and grade-appropriate sterilization are clinical requirements. The honest boundary: PC does not belong in mainstream packaging — not a barrier film, not a sealing film, priced out of single-use, and closed off from food contact in key markets. It starts earning precisely where service conditions measurably defeat PETG.
Specifying PC: the decisions that matter
A sound PC specification makes five commitments. Justify the rung: name the requirement PETG measurably fails — impact energy, service temperature, reuse life — because that line justifies the premium and the process burden. Grade by environment: UV-stabilised for daylight, hard-coated where scratching retires parts, FR where ratings govern, medical grades with documentation where clinical — generic PC is only the default indoors, unrated, and untouched.
Gauge by engineering, not habit: PC's stiffness and toughness let calculated gauges carry loads that intuition over-specifies, and its price makes the calculation worth doing. The chemical environment audited: list every substance the part will meet — service fluids, cleaning agents, workshop chemicals, label adhesives — against PC's stress-cracking sensitivities, because environmental stress cracking is the material's one quiet failure mode and it is entirely preventable at specification time.
And the food-contact question answered correctly: standard PC is effectively retired from food packaging in key regulated markets over BPA, so food-adjacent programs specify PETG or PET instead, and any exceptional regulated use of BPA-free copolycarbonate is its own documented decision. Specified against these five, PC delivers parts that outlive their applications; specified casually, it delivers the catalogue's most expensive surprises.
Designing PC parts: use the toughness, avoid the stress
PC design starts from an unusual freedom: the material will almost certainly not break, so geometry serves function rather than fear. Load-bearing features, snap fits, integrated hinge-points and thin sections that would be reckless in commodity films are engineering options in PC — the design constraint shifts from 'will it crack?' to stiffness, stress management and cost.
Stress is the real design enemy, because PC's failure mode of consequence is environmental stress cracking: molded-in or assembly stress plus an aggressive chemical equals cracks in an otherwise immortal part. Design accordingly — generous radii everywhere (habit, not necessity), even wall transitions, no press-fit interference beyond calculated limits, and fastening that clamps without straining. Where machining or aggressive forming leaves stress, specify annealing.
Design reusable trays as assets: stacking and denesting geometry rated for the loaded weight, wear surfaces where parts slide, drainage for washdown, identification molded in, and wall sections sized for the fleet's service life rather than the first trip. PC's dimensional stability holds interface dimensions (machine pockets, robot-handling datums) for years — exploit it deliberately in automation-facing designs.
Respect the surface: PC scratches easily uncoated, and on transparent guards and covers scratching is functional failure. Either specify hard-coated sheet (verifying formability limits with the supplier — coatings constrain draw), or design so the optical surfaces are protected: recessed panels, replaceable windows, orientation away from wear.
Tooling belongs to the hot end: heated aluminium production tools are standard, pressure-forming capability rewards the investment in detail, and prototype routes must tolerate 180–210 °C sheet — printed tooling is generally out of its depth here, so development runs on machined aluminium (or APET/PETG mock-ups for pure geometry work before committing). PC's low shrink means the tool cut is very nearly the part shipped, which rewards getting the engineering right once.
PC troubleshooting: moisture first, stress second
Bubbles, splay and silver streaks are PC's signature defect and always the same diagnosis: wet sheet. Absorbed moisture boiled at forming temperature. The fix is upstream and absolute — supplier-schedule pre-drying (hours at ~120 °C, gauge-dependent), a tracked working window for dried sheet, and no exceptions. No forming parameter rescues wet PC, and a part formed with internal steam damage is compromised even where it looks clean.
Brittle parts from a tough material — PC that cracks in trimming or service — have two causes worth separating: moisture degradation (the sheet was wet; toughness died in the machine) and stress plus chemistry (environmental stress cracking). If dried-sheet discipline is verifiably intact, look to ESC; if not, look no further.
Environmental stress cracking shows as fine cracks appearing in service, at stressed regions, often after chemical contact — a cleaning agent, a label adhesive, a workshop solvent. The remedy is systemic: audit every chemical the part meets, relieve design and assembly stress (radii, fastening, annealing after machining), and qualify substitute chemicals. ESC is PC's one quiet failure mode; it is also entirely preventable.
Poor detail or visible internal stress (rainbow patterns in polarised light, distortion at trim) means the sheet was formed under-temperature or under-soaked: PC's heavy gauges need patient heating so the core reaches the surface's temperature. Slow down, verify with core-temperature-aware heat cycles, and consider pressure assist — underheated PC is the classic cause of parts that pass inspection and fail in the field.
Yellowing or surface degradation in service is UV exposure finding unprotected PC: outdoor or high-daylight applications need UV-stabilised or capped grades, specified at the start. Scratched optical surfaces on guards and covers are a specification defect wearing a handling costume — uncoated PC in a wear-exposed role; the fix (hard-coated sheet, protective films through fabrication, or design that shelters the optical surface) is chosen at design time, not in the field.
Barrier behaviour: not the point
PC is not a barrier material, and honest specification says so plainly: its moisture transmission is unremarkable and its oxygen barrier poor-to-modest — far from packaging-barrier territory, and irrelevant to the applications PC actually serves. Formed PC parts are chosen for what they withstand, not what they exclude.
Where a PC application incidentally needs environmental protection — a sealed technical enclosure, a device tray with humidity limits — the barrier is engineered around the part: gasketed closures, desiccants, barrier bags for transit. Asking the polymer itself to solve a permeation problem is specifying against its nature.
The related property worth stating positively is containment integrity: PC's toughness means formed enclosures, guards and trays keep their integrity under impact and load — they do not crack open, shatter, or shed fragments. In safety applications that fragment-free failure behaviour, inherited from its glazing pedigree, is precisely the barrier that matters.
Sustainability: durability is the strategy
PC's sustainability case rests on the most defensible ground in materials: longevity. A formed PC tray or guard serving for five or ten years displaces hundreds of single-use equivalents, and lifecycle accounting rewards nothing so reliably as not manufacturing replacements. Specifying PC where its durability is genuinely used, and designing the part as a maintained asset, is the material's honest green story.
The conventional recycling story is weaker: PC is technically recyclable (resin code #7, 'other'), and industrial take-back of clean production offcuts and retired parts is practical and worth organising — but consumer-stream recovery is effectively nil, and the BPA question shadows recyclate markets. Realistic planning treats PC circularity as an industrial closed-loop opportunity, not a curbside one.
The BPA legacy belongs in any candid assessment: regulatory restriction has removed standard PC from food contact in key markets, and the reputational shadow extends beyond the science in public perception. For PC's actual modern applications — industrial, technical, medical-device — the issue is managed by staying out of the retired territory and documenting grade compliance where regulated; specifiers should simply never let a PC part drift toward food-adjacent use unexamined.
Forward pressure is modest precisely because PC's niche aligns with regulation's direction: reuse targets, durable-asset thinking and right-to-repair currents all favour the long-lived formed part over the disposable one. PC's environmental risk is over-specification — engineering polymer spent where a commodity would serve — and the discipline that prevents it (justify the rung) is the same discipline that makes every other part of a PC program work.
PC vs PETG vs PP for thermoformed parts
PC vs PETG vs PP. PC vs PETG is the decision that matters most, because PETG is the rung below and usually the right answer: markedly cheaper, dramatically easier to form (lower temperatures, forgiving drying), food-safe, medically established and tough enough for nearly all packaging and most tray duty. PC takes over only where PETG's limits are measurably exceeded — service heat beyond ~70 °C, impact regimes that dent or crack PETG, reuse lives PETG's surface and toughness cannot carry; climb deliberately, because most projects should not reach this rung. Against PP the contrast is different: PP is a cheap, chemically resistant, recyclable commodity that hot-fills and lives happily in the packaging mainstream, but it is hazy, low-stiffness and nowhere near PC's impact class or dimensional precision — PP wins on cost, food contact and recyclability, PC wins on clarity, toughness, stiffness-at-temperature and technical service life. The honest boundary is that PC does not belong in mainstream packaging at all: it is not a barrier film, not a sealing film, priced out of single-use, and regulatory history has closed food contact in key markets. PC earns its place precisely where impact, heat and years of reuse defeat the commodity rung — and its one governing discipline, justify the rung, is what keeps an engineering polymer from being spent where PETG or PP would have served.
What temperature can polycarbonate withstand?
Roughly 130–135 °C in continuous service — the highest of the clear forming materials in this catalogue — with useful toughness retained to around −40 °C. Its glass transition sits near 147 °C; short excursions above continuous ratings are grade- and load-dependent, so verify against the supplier datasheet for hot applications.
Does polycarbonate need drying before thermoforming?
Absolutely and non-negotiably: PC is strongly hygroscopic, and absorbed moisture boils at forming temperature — bubbles, silver streaks, splay and internal embrittlement. Pre-dry per the supplier schedule (typically hours at ~120 °C, longer for heavy gauge) and track the dried sheet's working window. No forming parameter rescues wet PC.
What temperature does PC thermoform at?
Hot — sheet surface in the region of 180–210 °C as a starting point, with patient heat-soak so heavy gauges reach temperature through the core, warm tooling, and pressure assist rewarding crisp detail. Underheated PC forms with high internal stress that surfaces later as cracking; recipes are grade-specific, so validate against the datasheet.
Is polycarbonate food safe?
Standard (BPA-based) PC has been effectively retired from mainstream food-contact packaging in key regulated markets, and food-adjacent programs should specify PETG or PET instead. Where an exceptional regulated use exists, BPA-free copolycarbonates are their own deliberate, documented specification — never a casual substitution.
When should I choose PC over PETG?
When a requirement PETG measurably fails is on the table: continuous service heat beyond PETG's ~70 °C comfort, impact regimes that crack or dent it, or multi-year reuse lives its surface and toughness cannot carry. Otherwise choose PETG — cheaper, far easier to form, food-safe and medically established. The disciplined ladder is PET → PETG → PC.
How strong is thermoformed polycarbonate really?
It is the reference tough clear plastic — the polymer of safety glazing and protective shields — and formed parts inherit that character: they flex, dent tooling marks, and survive impacts that shatter or crack every commodity film. Its meaningful failure mode is not impact but environmental stress cracking: stress plus an aggressive chemical.
What is environmental stress cracking in PC and how do I prevent it?
Fine cracks appearing in service at stressed regions after chemical contact — cleaning agents, adhesives and solvents are classic triggers. Prevention is systemic: audit every chemical the part meets, design and assemble for low stress (radii, non-straining fastening), and anneal after aggressive machining. ESC is PC's one quiet failure mode and it is entirely preventable at specification time.
Can polycarbonate be sterilized?
Grade-dependent: medical PC grades tolerate EtO and radiation sterilization broadly, while repeated steam autoclaving is limited (typically a bounded number of cycles before strength declines) and must be verified against the specific grade's rating. For instrument trays and device components, specify a documented medical grade and its sterilization file rather than generic sheet.
Does polycarbonate scratch easily?
Yes — uncoated PC's surface is soft relative to its toughness, and scratching is the usual way an otherwise immortal transparent part retires. Hard-coated grades address it (verify forming limits with the supplier), and design can shelter optical surfaces; specify the surface strategy at design time.
Can PC be used outdoors?
Only as UV-stabilised or UV-capped grades: unprotected PC yellows and embrittles under prolonged UV exposure. Weatherable grades are standard supply for exterior guards, glazing-class parts and covers — the outdoor decision is a grade decision, made at specification.
Is polycarbonate recyclable?
Technically yes (resin code #7, 'other'), and clean industrial offcuts and retired parts are worth organising into take-back loops — but consumer-stream recovery is effectively nil and BPA questions shadow recyclate markets. PC's honest sustainability case is durability: one long-lived part displacing many disposable ones.
Is thermoformed PC suitable for automation and robot handling?
Very — PC's stiffness, low shrink and years-long dimensional stability hold the interface dimensions automation depends on: machine pockets, locating datums, gripper features. Combined with transparency for vision systems and machine-vision inspection, it is a natural material for automated-cell trays and fixtures.
Can PC be cold-formed instead of thermoformed?
Flat PC sheet cold-bends along straight lines for fabrication work (brake-bending within grade limits is established practice), but genuine formed cavities and compound curves need thermoforming — cold work leaves high locked-in stress, which invites environmental stress cracking in service. For formed parts, form hot and anneal where machining adds stress.
What gauges does thermoformed PC typically use?
Heavier than packaging films: durable trays, guards and covers commonly run from around 1 mm up through several millimetres, chosen by structural calculation rather than habit. The heavy gauges are why PC forming means patient heat-soak, warm tooling and engineering-part cycle times.
Why is PC so much more expensive to run than PETG?
Three compounding reasons: engineering-polymer sheet prices, mandatory drying infrastructure and scheduling, and hot, slow, heavy-gauge forming cycles closer to industrial fabrication than packaging production. The premium buys properties nothing else in the clear catalogue offers — which is exactly why the specification should prove it needs them.
